Float sensor solutions
Vertical Mount
- Switch power rating：10VA / 70VA
- Switch voltage：125-250V AC；175-200 V DC
- Switch current：250mA-1000mA
- Operating ambient：-40 ~ +100 °C
- Max switch carry current：1A-1.5A
- Set point accuracy：±10% max.
- Repeatability：±2% max.
- Mounting thread：M8, NPT1/8″
- Material：PP, PVDF
- Cables available length：340mm or we can customize cables length to meet your specific needs.
Horizontal Mount
- Switch power rating：10VA / 70VA
- Switch voltage：125-250V AC；175-200 V DC
- Switch current：250mA-1000mA
- Operating ambient：-40 ~ +100 °C
- Max switch carry current：1A-1.5A
- Set point accuracy：±10% max.
- Repeatability：±2% max.
- Mounting thread：M16, NPT1/2″
- Material：PP, PVDF
- Cables available length：340mm or we can customize cables length to meet your specific needs.

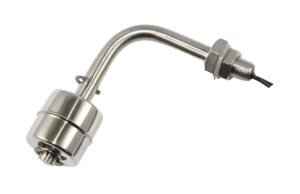

Stainless Steel
- Switch power rating：50VA
- Switch voltage：125-250V AC；175-200 V DC
- Switch current：250mA-1000mA
- Operating ambient：-40 ~ +100 °C
- Max switch carry current：1A-1.5A
- Set point accuracy：±10% max.
- Repeatability：±2% max.
- Mounting thread：PF 1/8″, NPT 1/2″
- Material：304, 316
- Cables available length：340mm or we can customize cables length to meet your specific needs.
- The above specifications can be customized to meet your specific needs.
